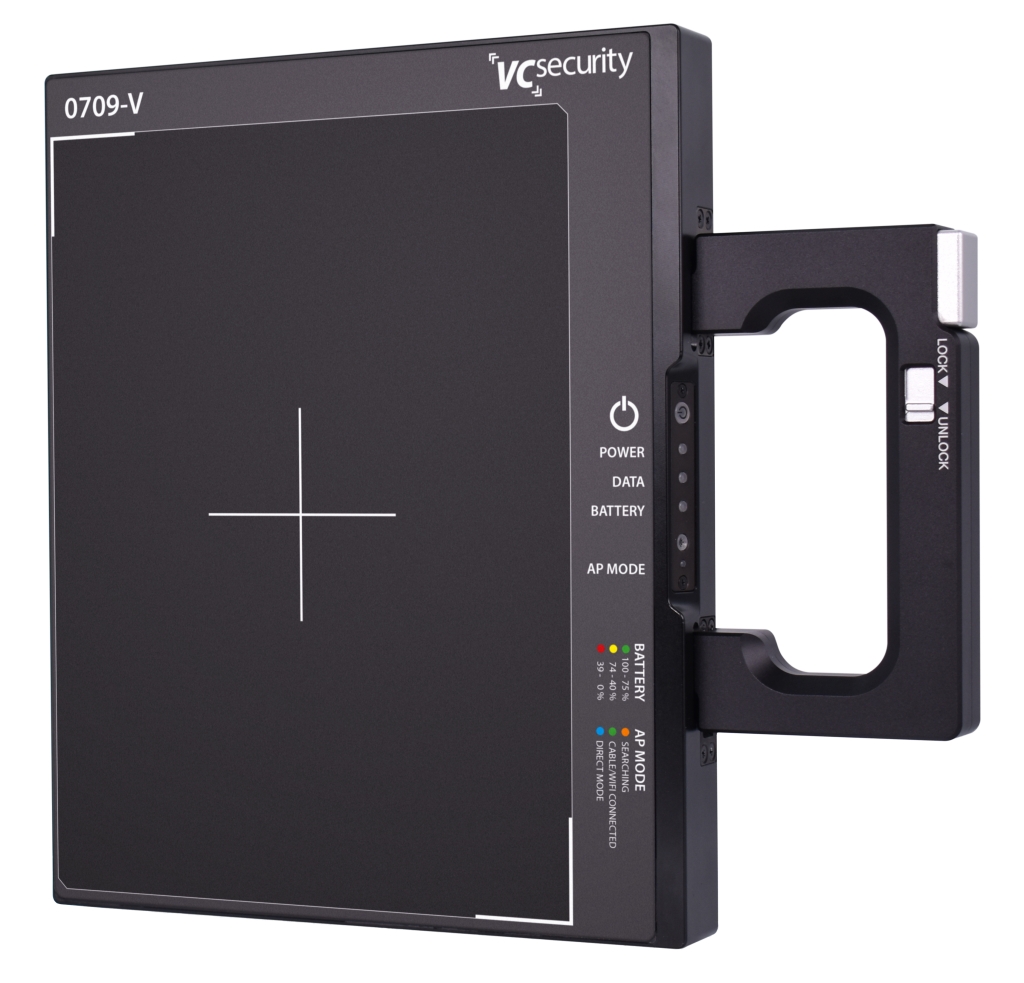

DR09-V
Compact 17 x 23cm X-ray Imager
DR9-V is a compact and lightweight x-ray panel for security and defence x-ray applications. The panel is designed for harsh environments, is dust and water tight, impact and drop resistant to 1m.
The imaging area is 173 x 233 mm and offers 16 bit, 75 micron high resolution images.
DR9-V is compatible with both pulsed and CP x-ray generators.
Includes rechargeable lithium ion hot-swappable battery, providing up to 8 hours image capture time
Standard System Configuration
Compact 17 x 23 cm X-ray Imager
- Golden XR150
- DR09-V Panel
- Ebox Light
- Tablet Viewer/Controller
- Multiple mounting and optional accessories available
Active Image Area
172.8 mm × 230.4 mm
Pixel Pitch
75 Microns
Bottom Dead Area
3/6Mm
Environmental Protection
Environmental Protection
Image Resolution
2304 x 3072 pixels
Dimensions
208.2 × 256.5 × 27.5 mm
Options
- System with Golden Generator
- Imaging Panel standalone existing generator and controller
