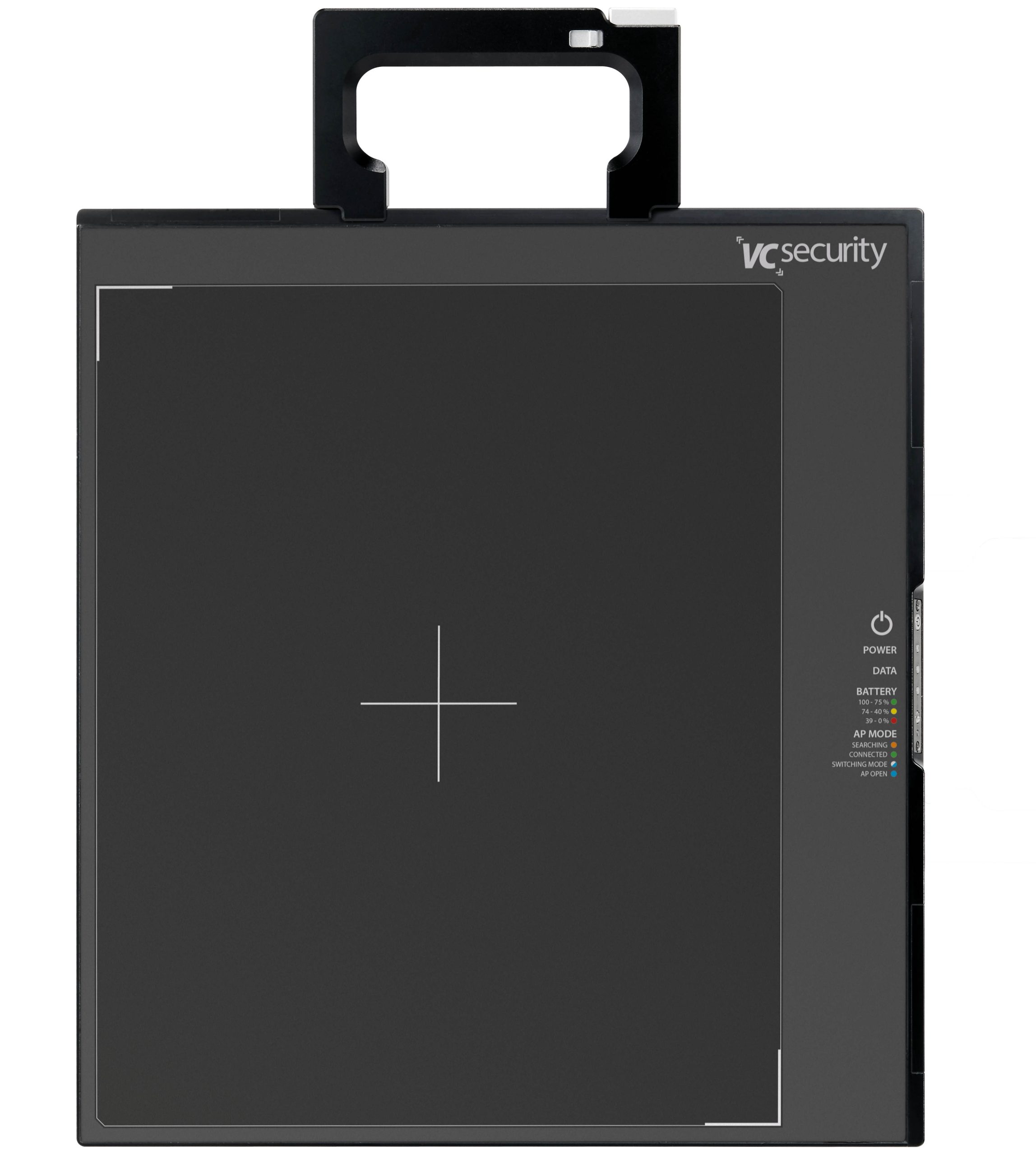

VCsecurity by SCANNA: DR12-V X-Ray Panel

The DR12-V is a compact and lightweight X-ray panel engineered specifically for security and defense applications. Built to perform in harsh environments, the panel is fully dust and water-tight, as well as impact and drop-resistant up to 1m.

Highlighted Features
High-Resolution Imaging: Delivers 16-bit, high-definition images at 124 microns and 4 lp/mm.

Rugged Durability: Features IP67 environmental protection against dirt, dust, and water ingress.

Extended Battery Life: Equipped with a rechargeable, hot-swappable lithium iron battery that provides up to 8 hours of image capture time in the field.

Adaptable Form Factor: Includes a slim 17mm panel design and a removable handle for flexible deployment in both portrait and landscape modes.

Versatile Connectivity: Operators can easily switch between wired and wireless operation modes.

System Integration and Operation

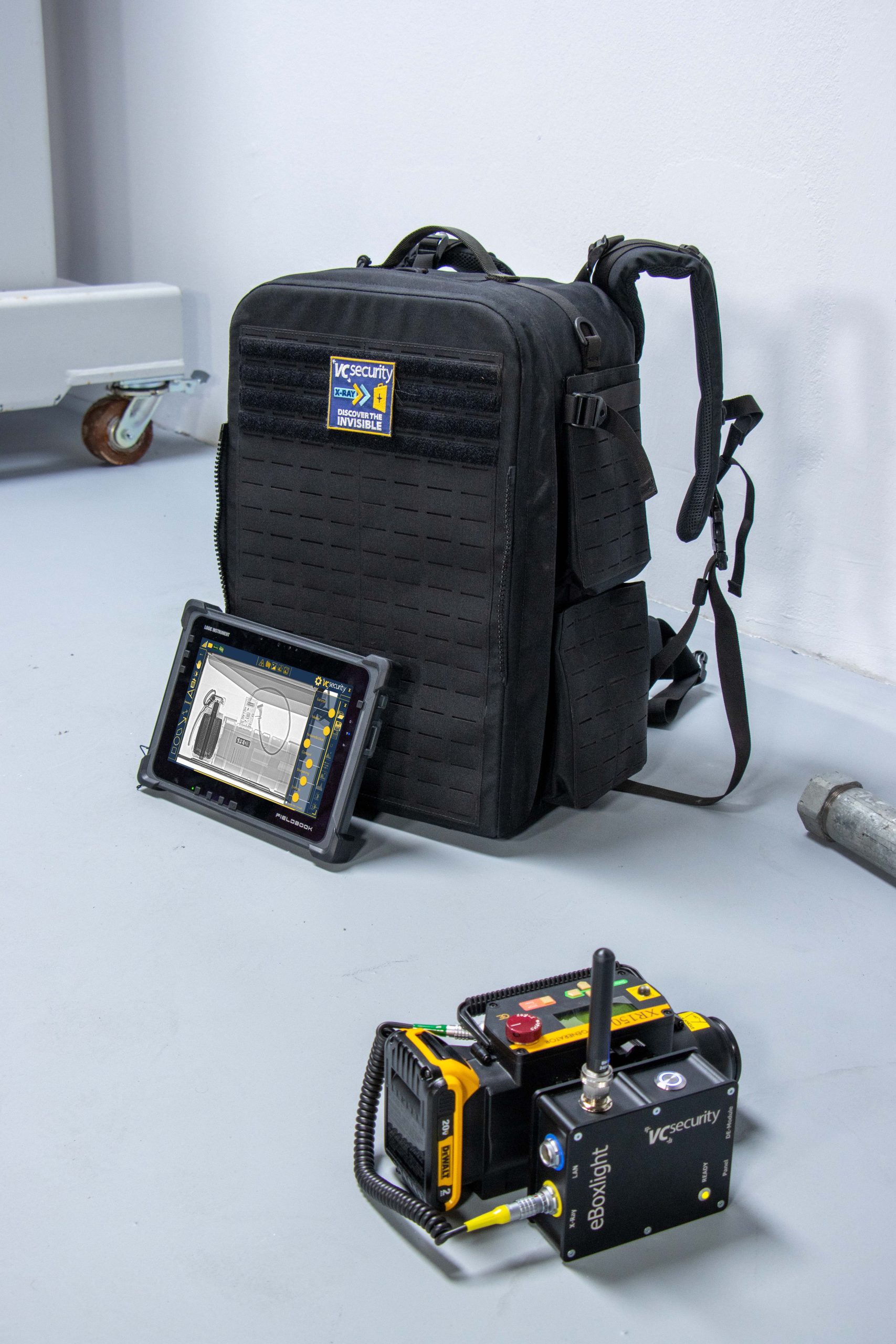

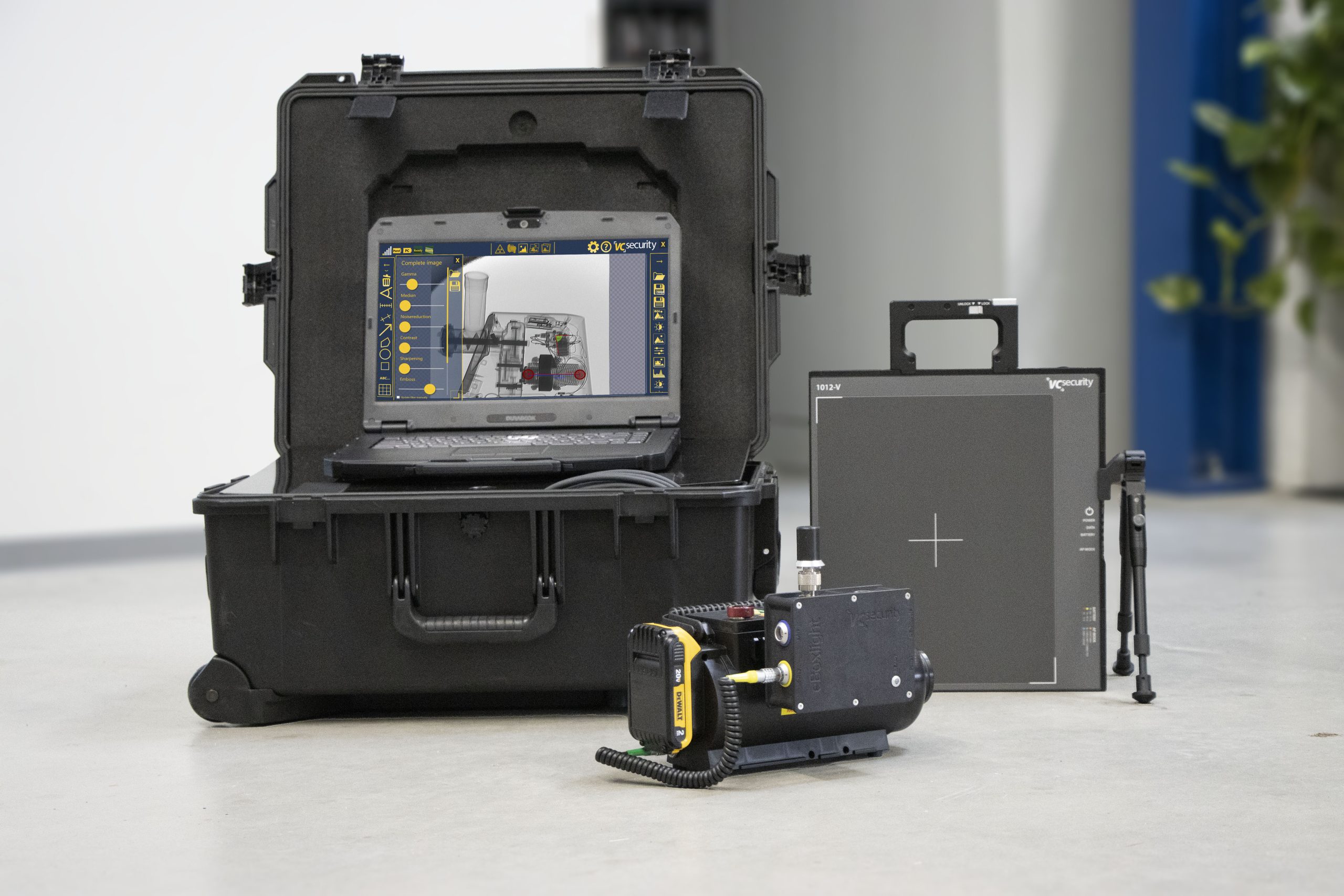

The DR12-V is highly adaptable, operating seamlessly with any of the Golden XR pulsed X-ray generators and other CP X-ray sources. Operators can control the equipment in sync mode directly from a selected semi-rugged or fully rugged Windows tablet or laptop, entirely eliminating the need for an extra interface communications box. Furthermore, an alternative stand-alone (AED) mode allows the X-ray generator to be triggered manually.

For image analysis, the panel operates with proprietary Vi Scan Imaging Software. For government-approved users, images can also be exported directly to XTK imaging software.
