DR17-V
Designed for extreme field operations with longer battery time and wireless operation

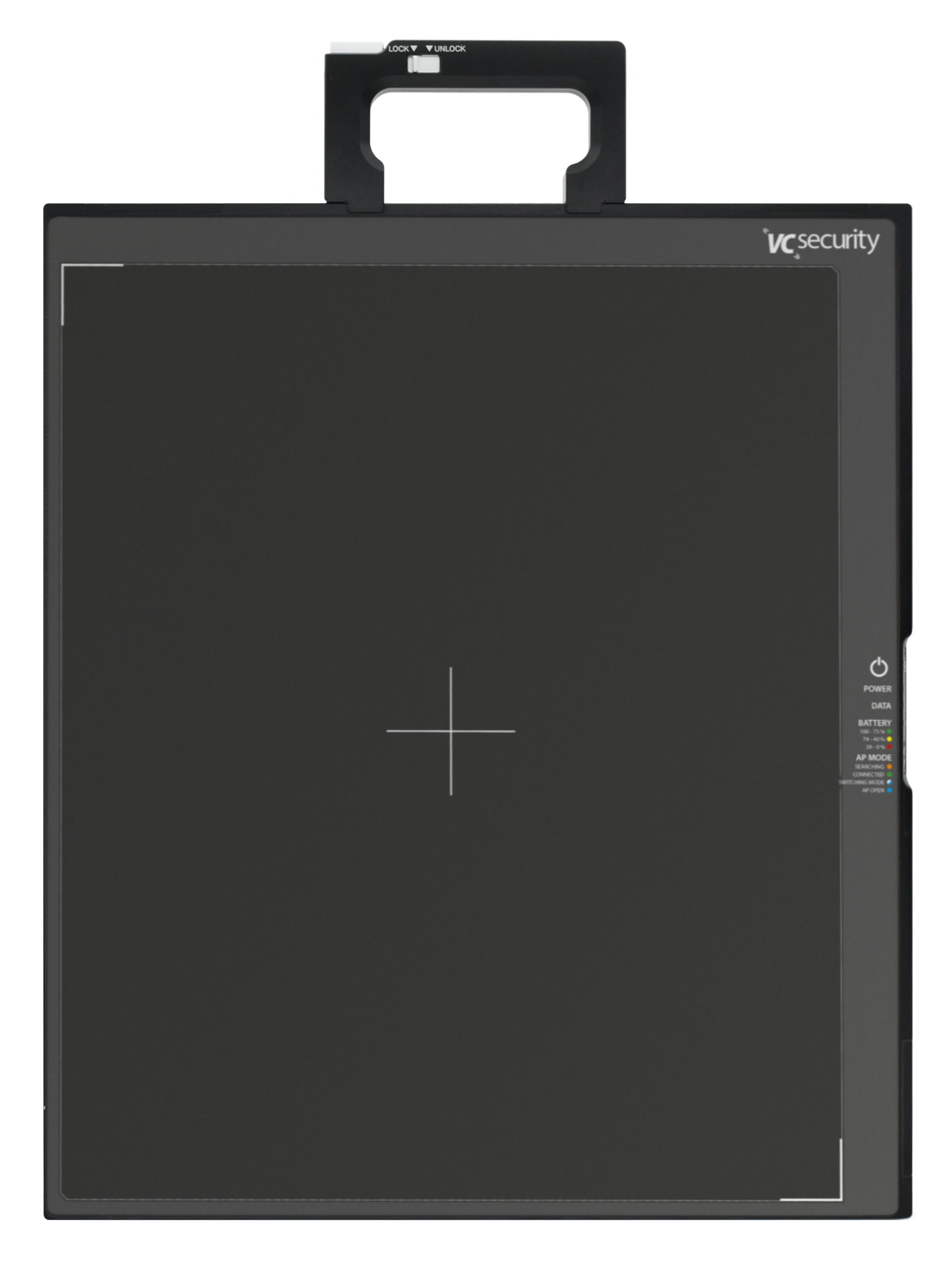

DR17-V is a robust, large format x-ray panel for security and defence x-ray applications. The panel is designed for harsh environments, is dust and water tight, impact and drop resistant to 1m. The imaging area is 358 x 430 mm and offers 16 bit, 140 micron high resolution images. DR17-V is compatible with both pulsed and CP x-ray generators. Operators can control in sync mode from a tablet or laptop. Alternative stand-alone (AED) mode with the x-ray generator triggered manually. Includes rechargeable lithium ion hot-swappable battery, providing up to 8 hours image capture time
Specification
- Pixel Pitch: 140 microns
- Active Image Area: 36 x 43 cm
- Weight: 4.2 kg
- Technical
- Options
- Downloads

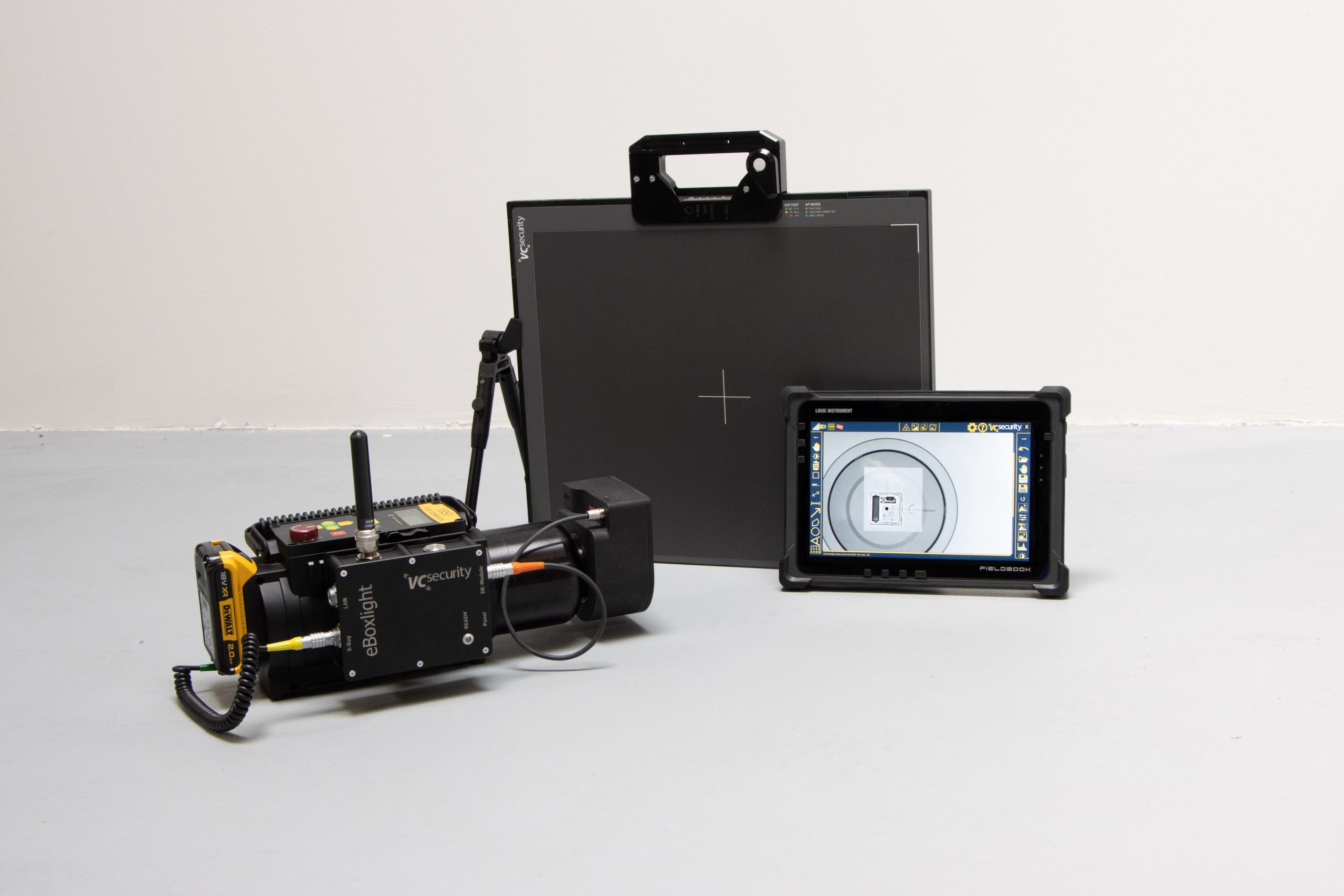

Standard System Configuration
- Golden XRS-3
- DR17-V Panel
- Tablet Viewer/Controller
- Ebox Lite Eco
Active Image Area
358 x 430 mm
Pixel Pitch
140 Microns
Bottom Dead Area
8 mm
Environmental Protection
IP67
Image Resolution
3.5 lp/mm
Dimensions
400 x 470 x 17 mm
Options
- System with Golden Generator
- Imaging Panel standalone existing generator and controller
