Scansilc 2430U
Scansilc 2430U

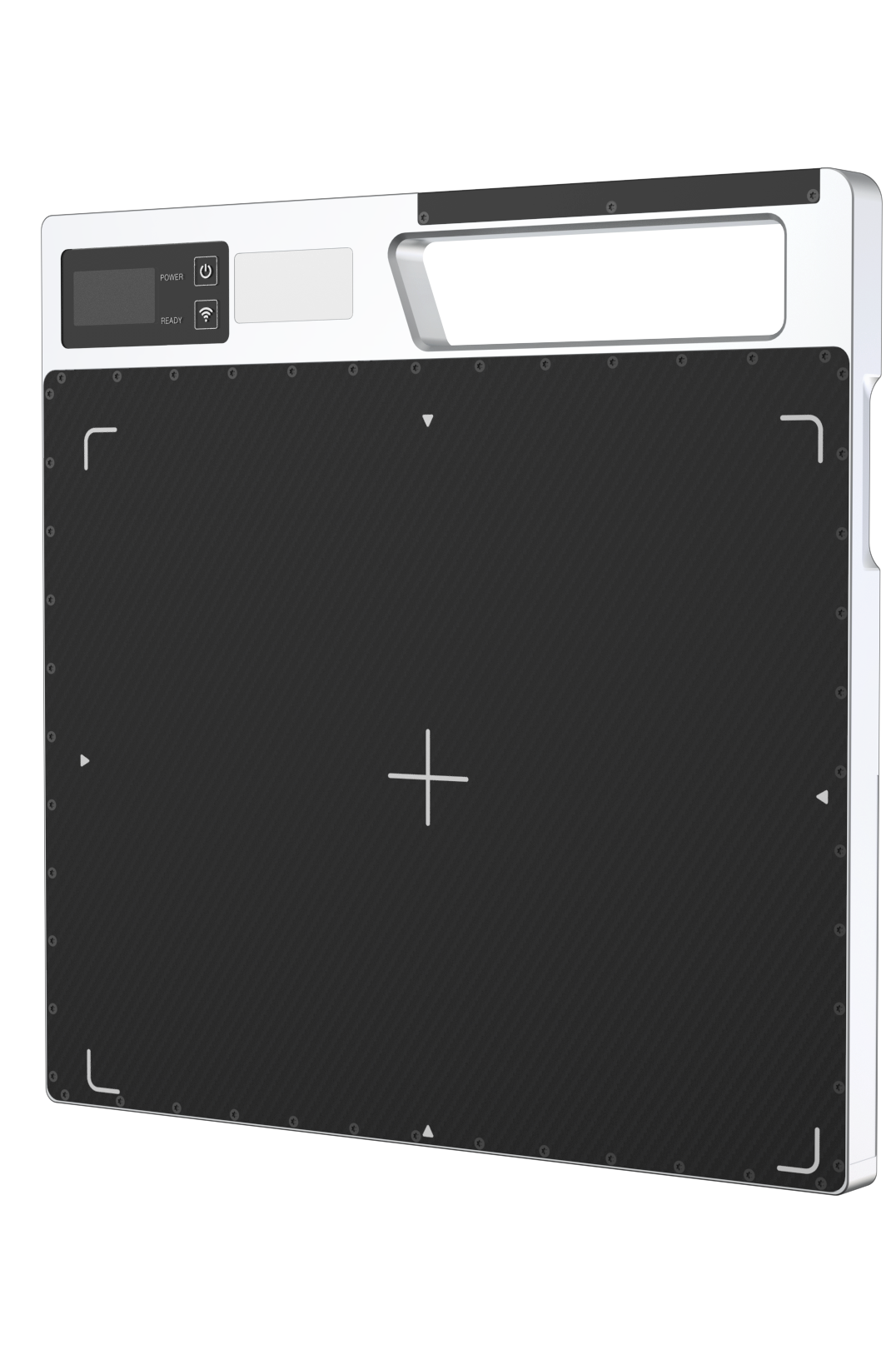

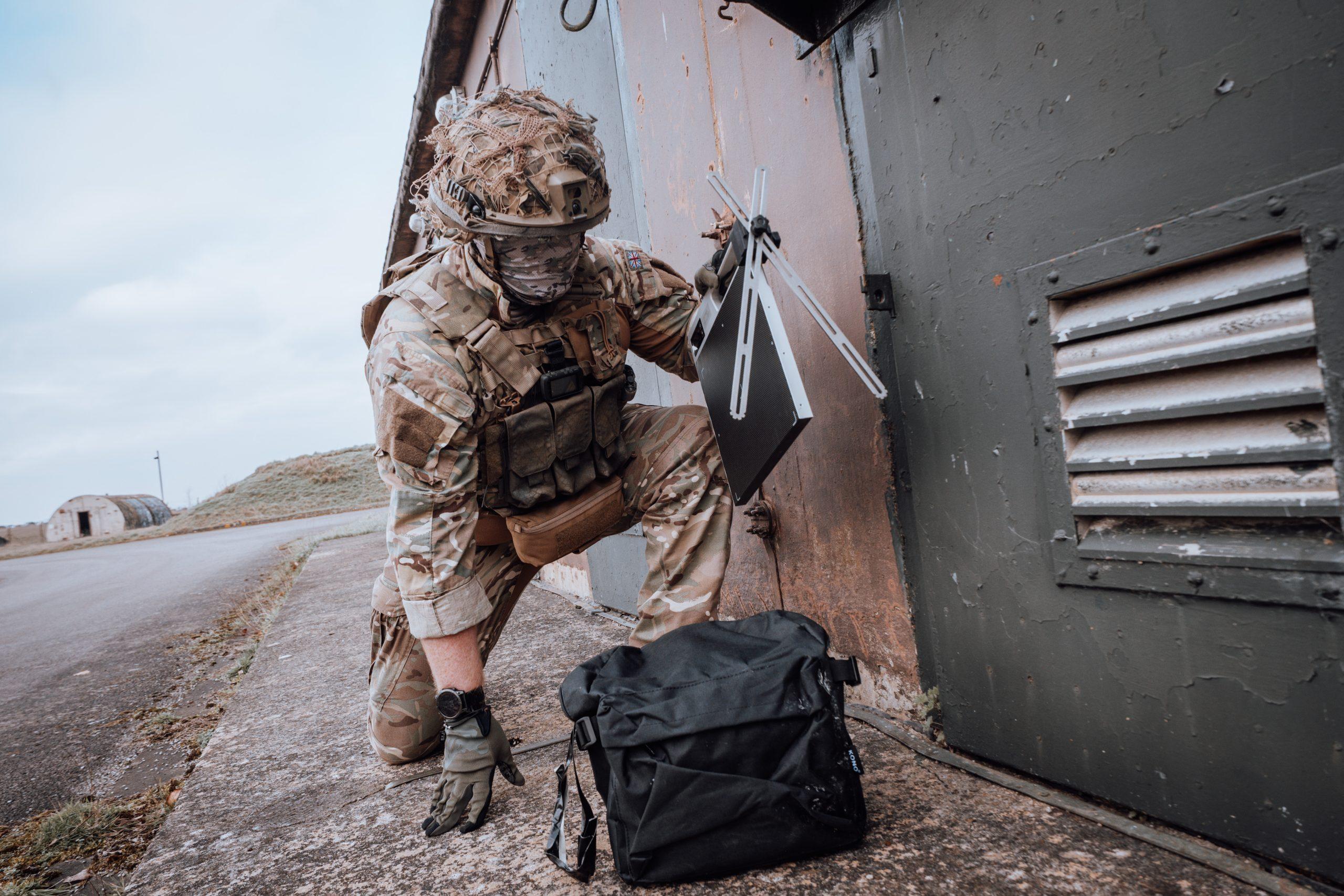

SCANSILC 2430U is a new robust and compact x-ray panel for security, defence and light industrial x-ray applications. The panel is designed for security and EOD operators, is dust and water tight, impact and drop tested to 1m, yet weighs only 2 kg.
The imaging area is 233 x 291 mm and offers 16 bit, 76 micron high resolution images. The system is PB protected and designed for seamless operation with both pulsed and CP x-ray generators.

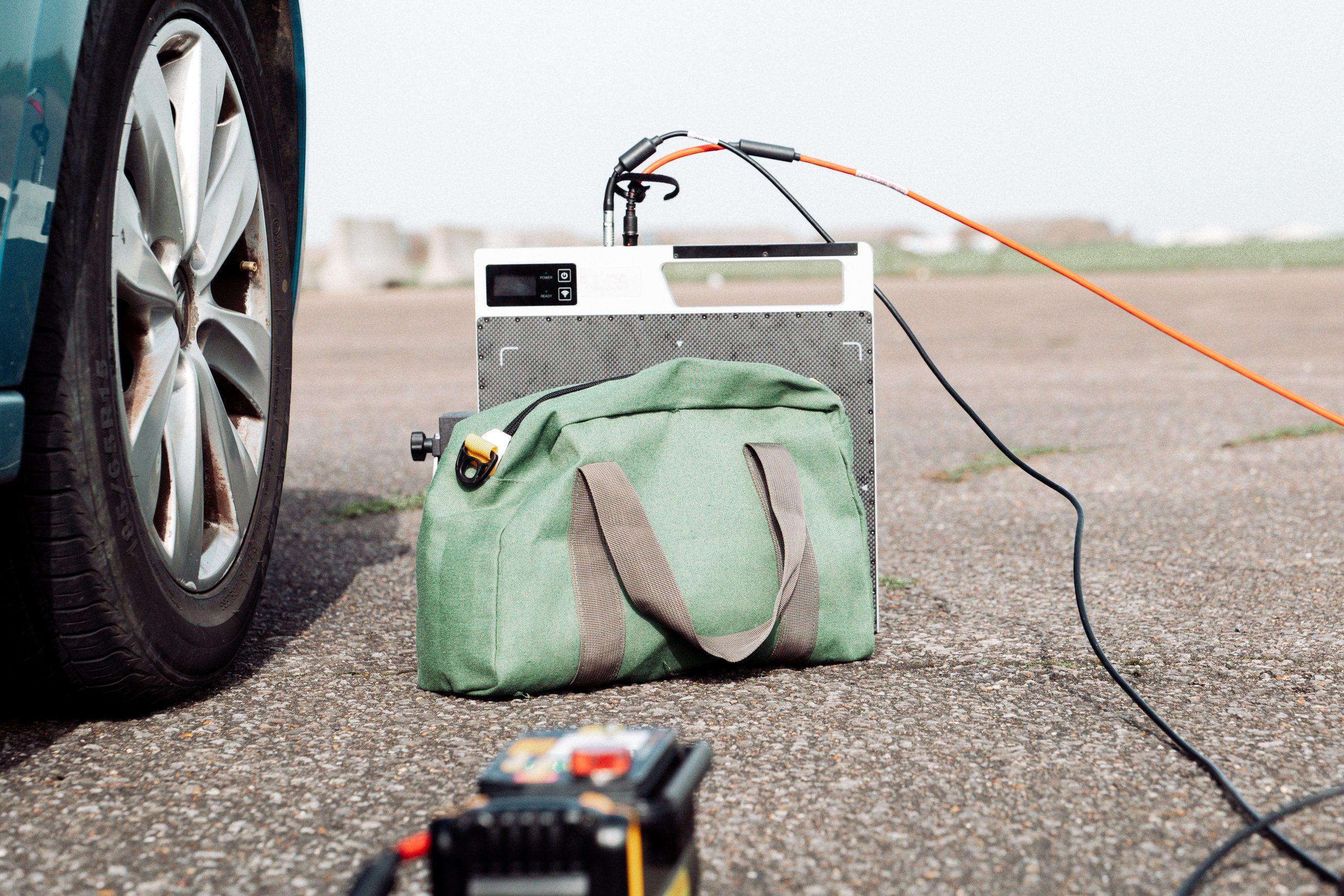

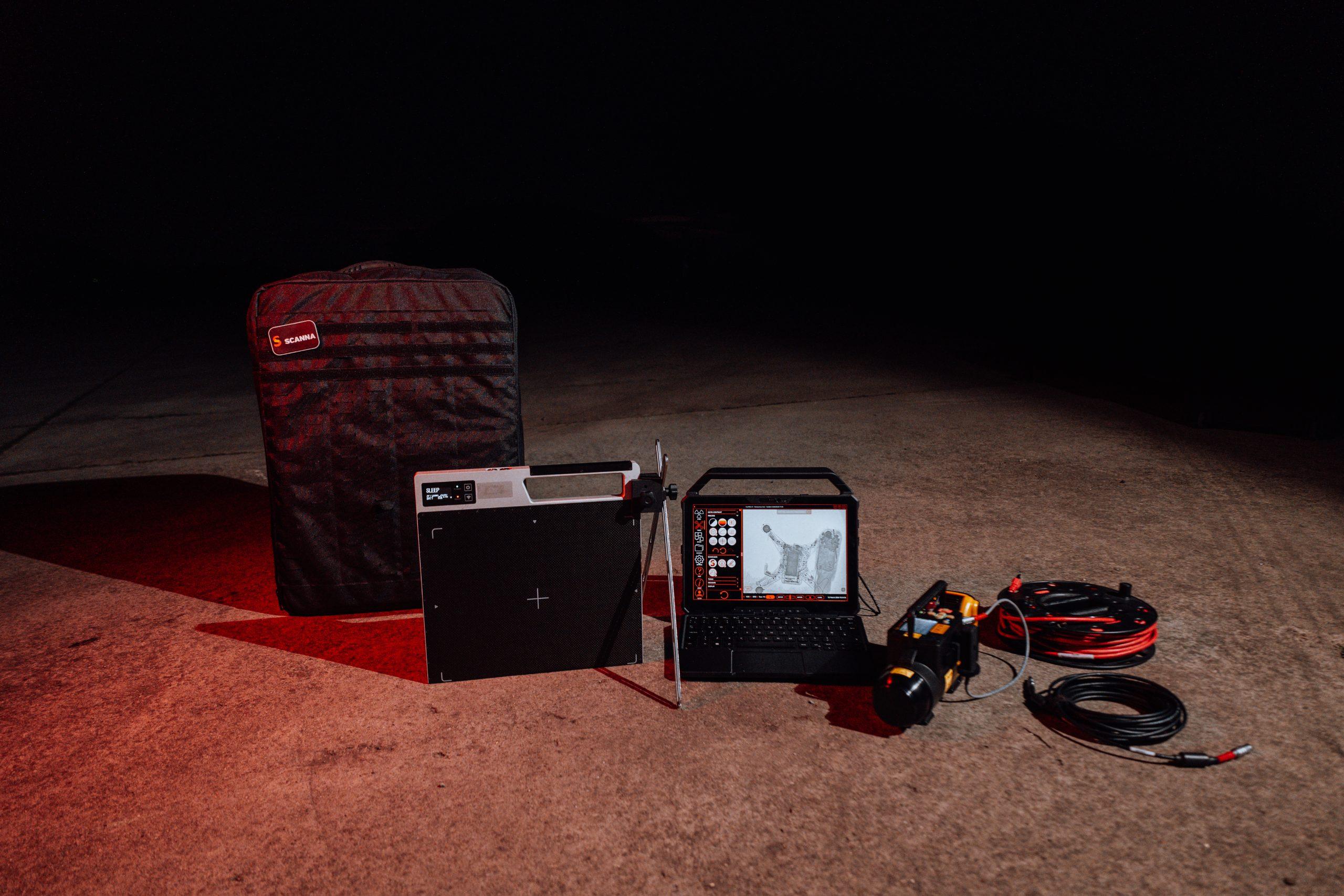

Scansilc is a versatile x-ray system, giving you the choice of various operational options according to your mission but without all the unnecessary power interface boxes and communications hubs that other x-ray models require. Operates in sync mode with a direct cable (or wi-fi) connection to your generator and laptop or with the x-ray generator stand-alone in AED mode (Automatic Exposure Detection).

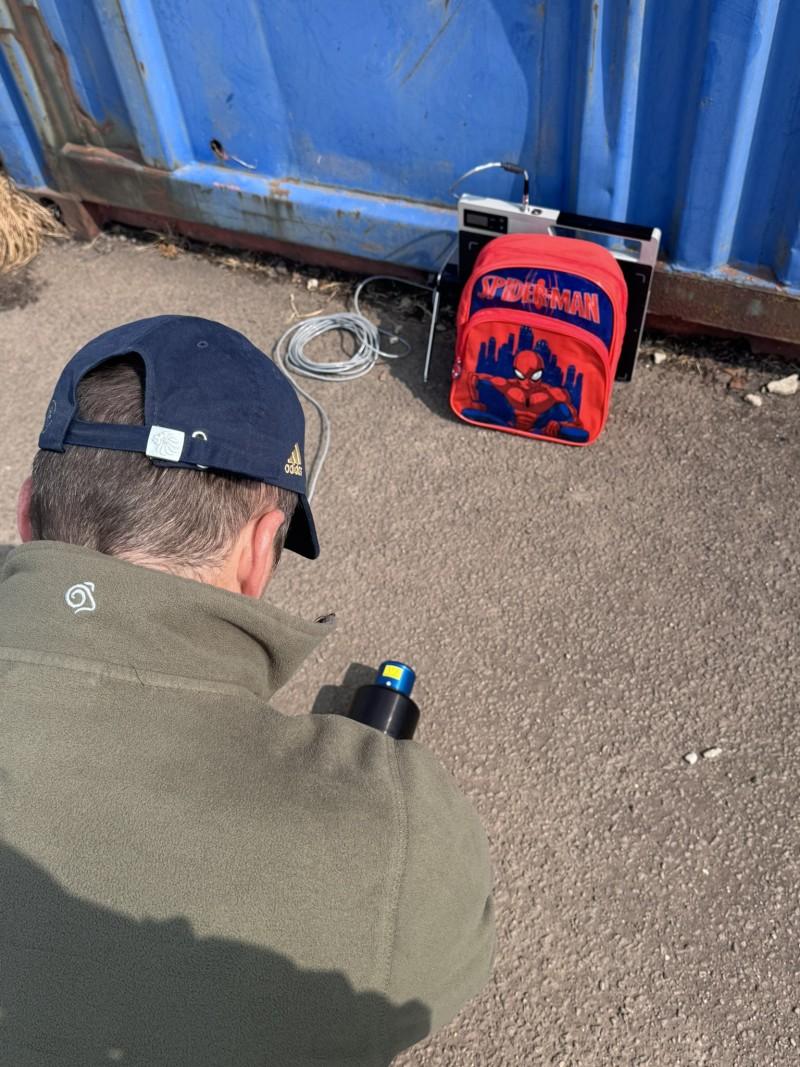

Synchronised Operation

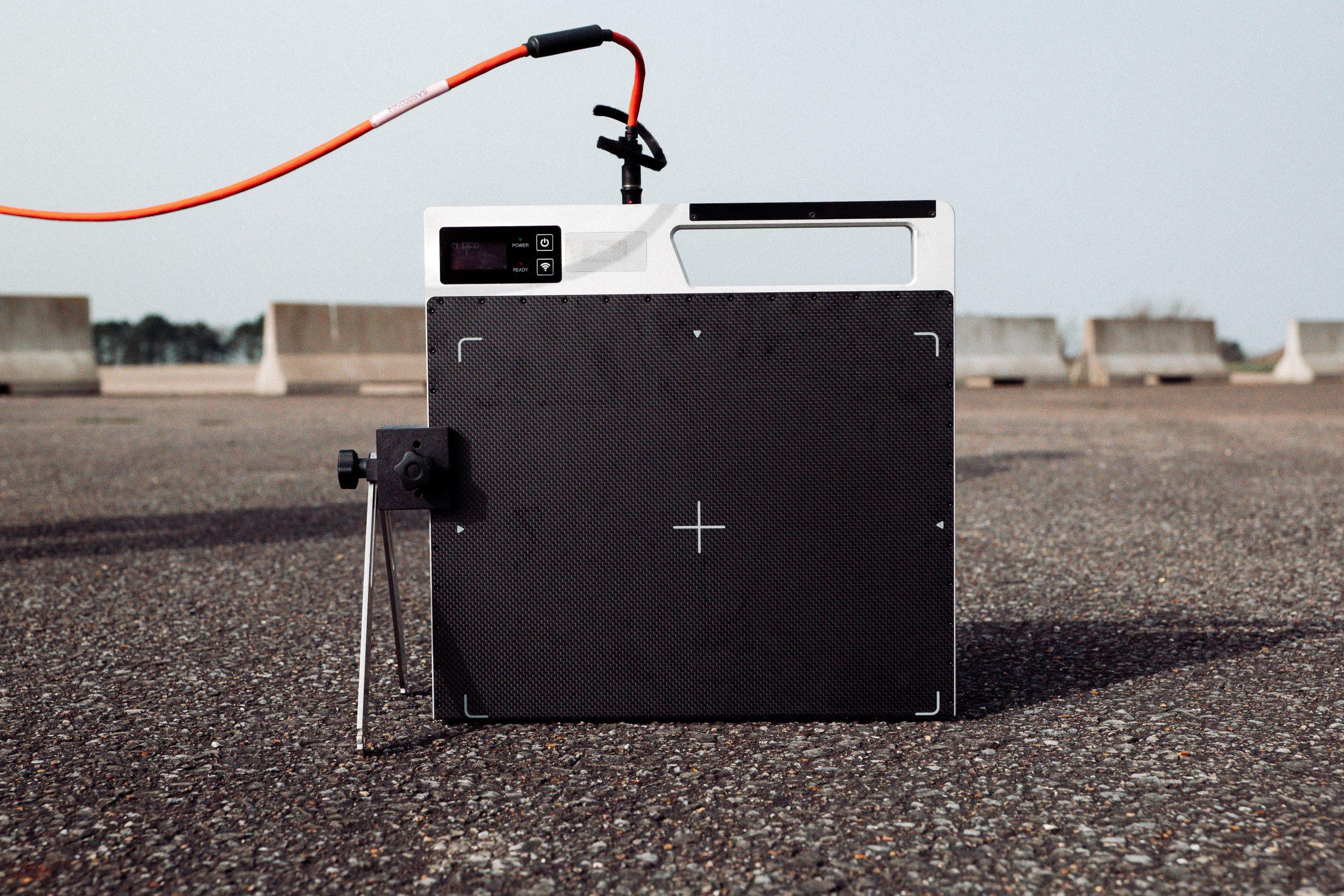

Fully cabled operation
cable between x-ray imager and laptop/tablet
cable between x-ray imager and x-ray source
Semi Cabled/semi wi-fi
cable between x-ray imager and x-ray source
wireless communication between x-ray imager and laptop/tablet
Wireless Mode
bluetooth communication between x-ray imager and x-ray source
wi-fi communication between x-ray imager and laptop/tablet

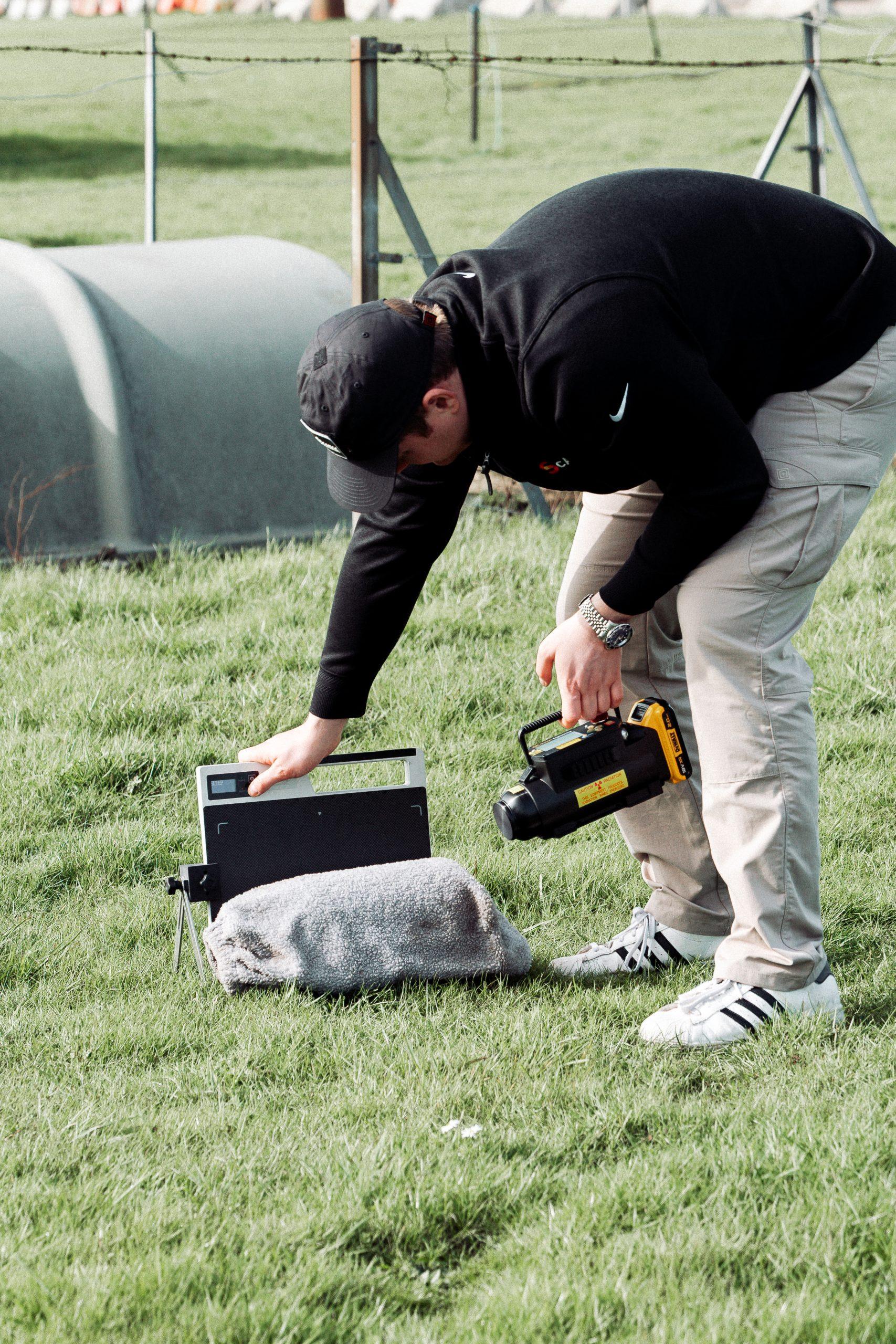

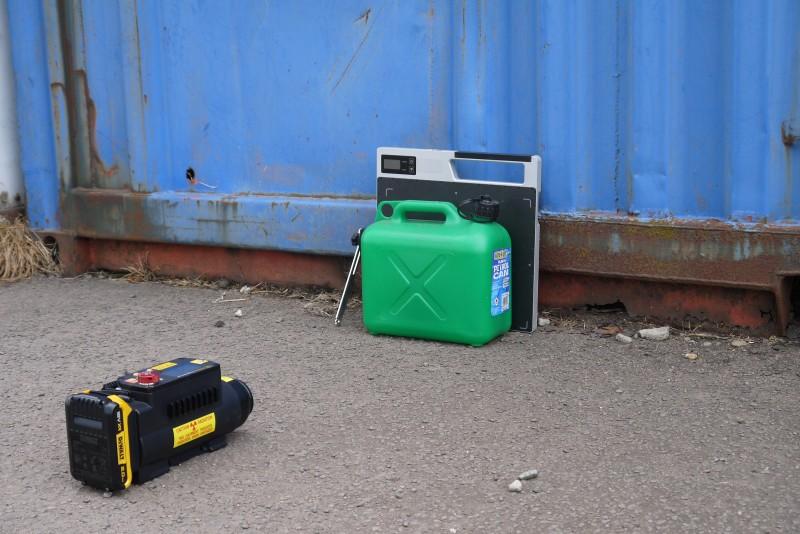

AED MODE
AED mode allows the use of any Golden Engineering pulsed X-ray sources and approved CP x-ray sources in a manual mode without any connection to the imaging components.
Image Data transmission back to the laptop/tablet can be via cable or wi-fi.

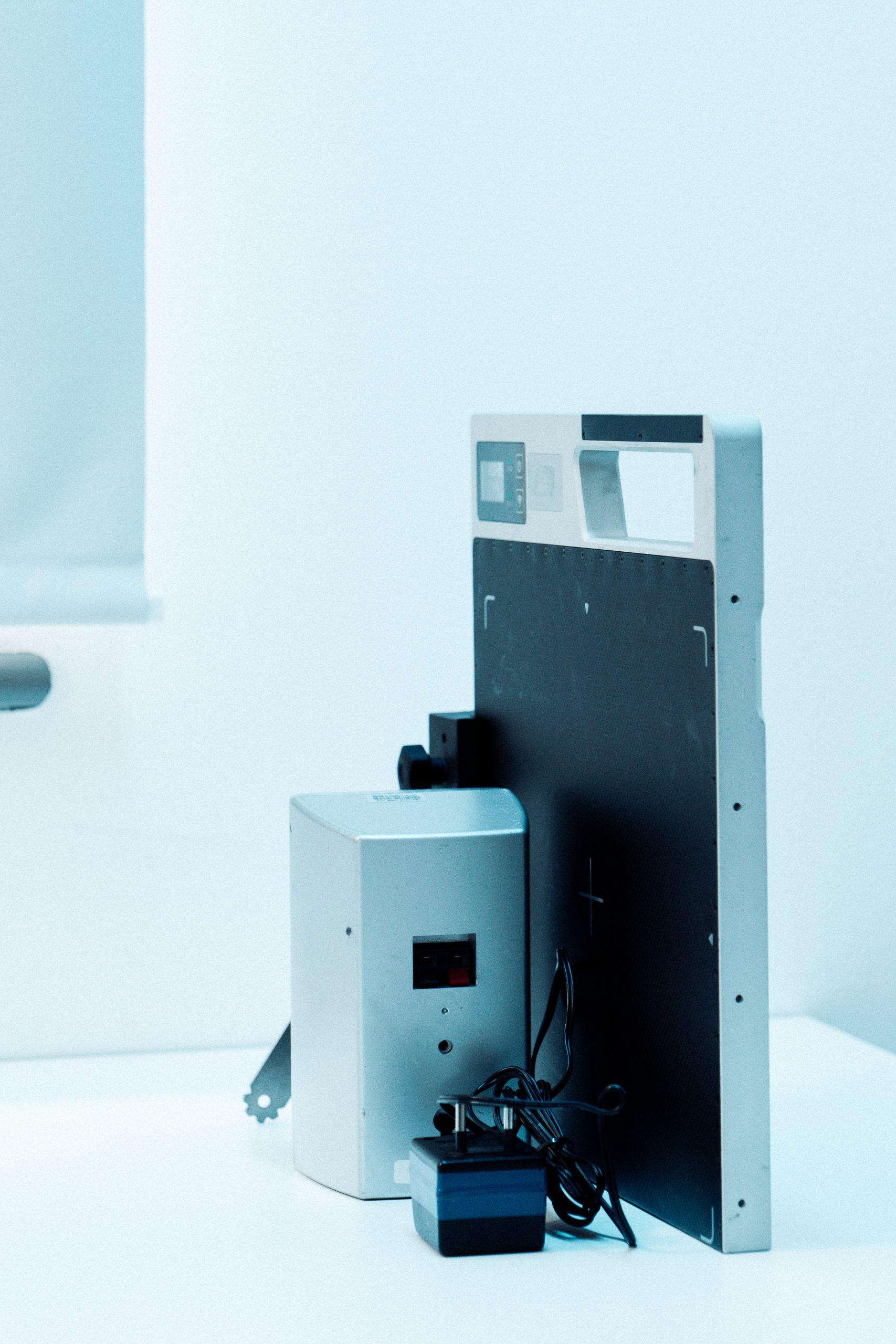

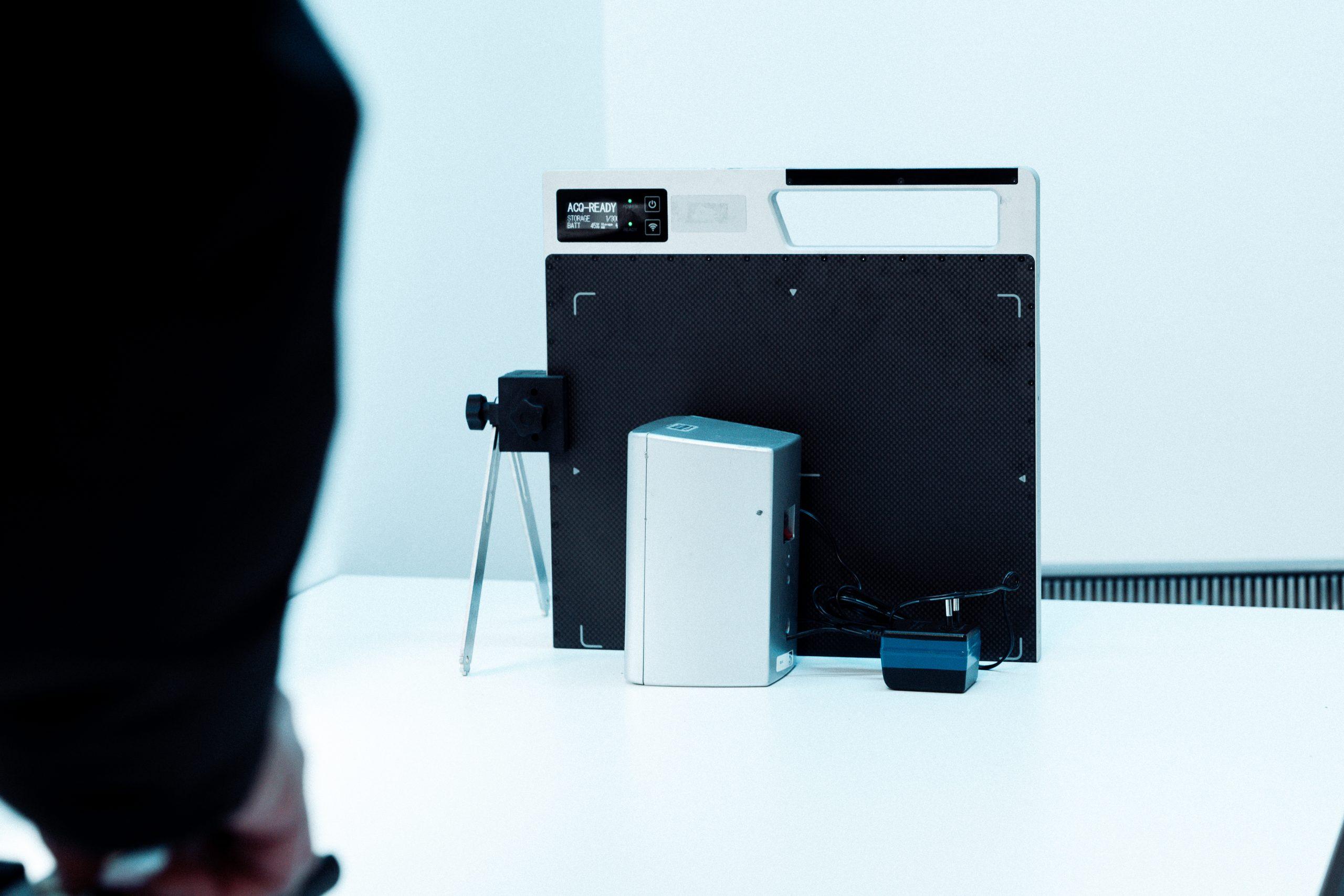

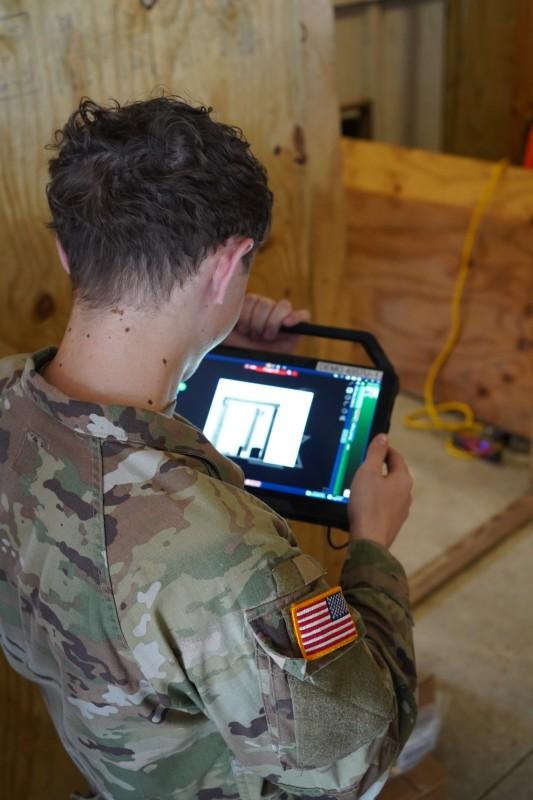

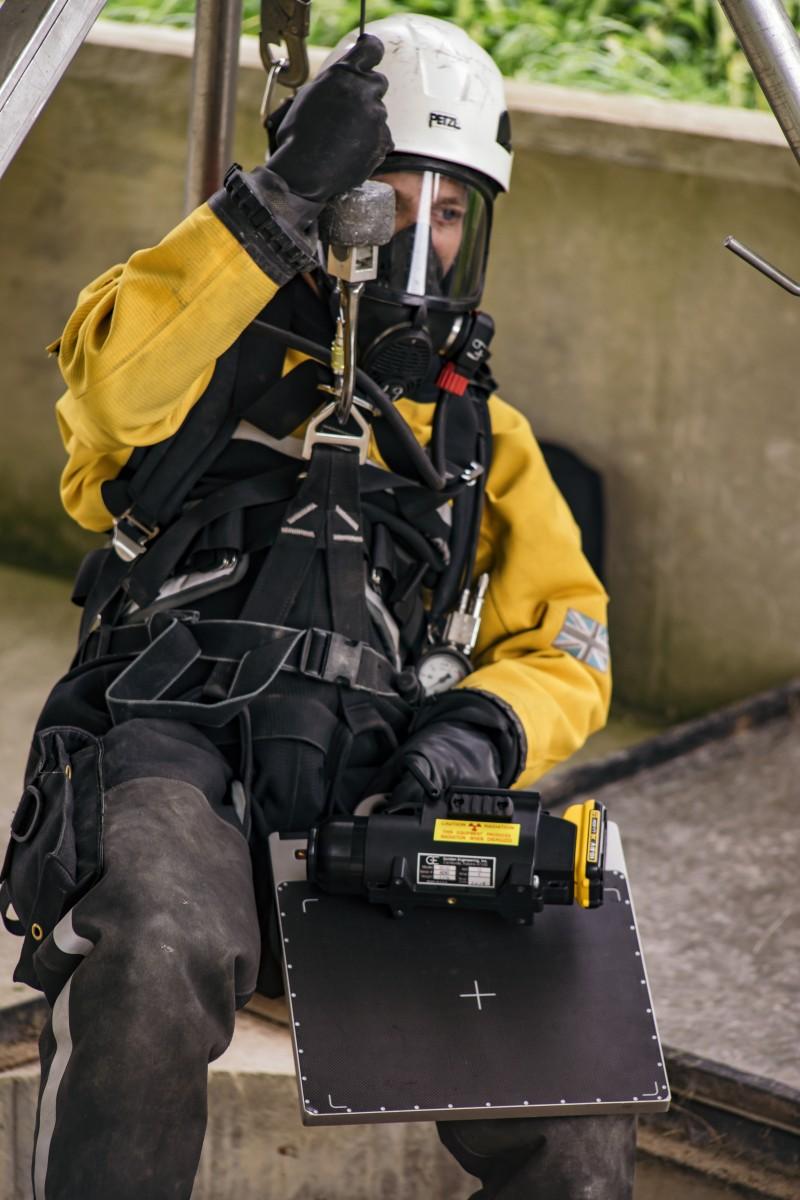

NOTE: Some operational images may still show previous X-ray panel designs. We are in the process of updating our materials, and new images will be added soon.

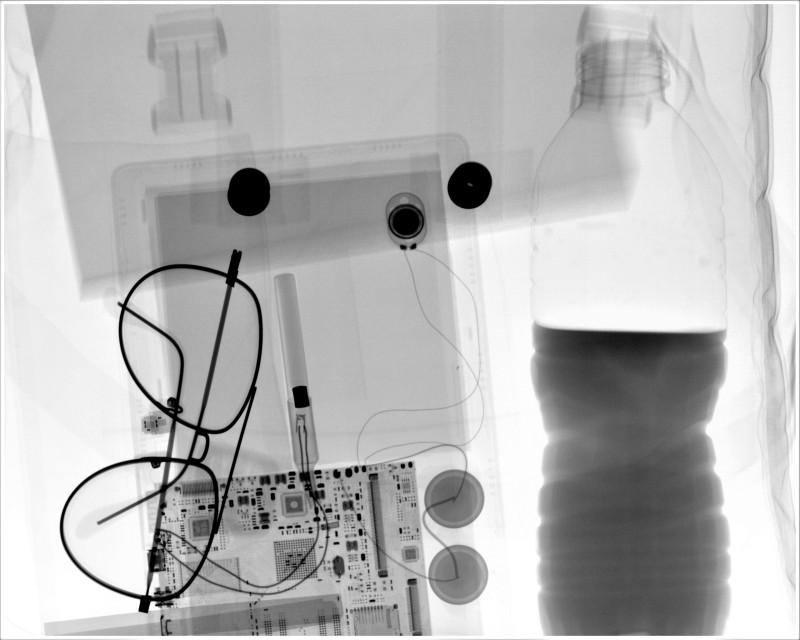

Best in Class Imaging Quality of 76 microns
Drop Tested to Over 1m on All 4 Corners
Ruggedised Unibody Design
- Technical
- Options
- Downloads
Standard System Configuration

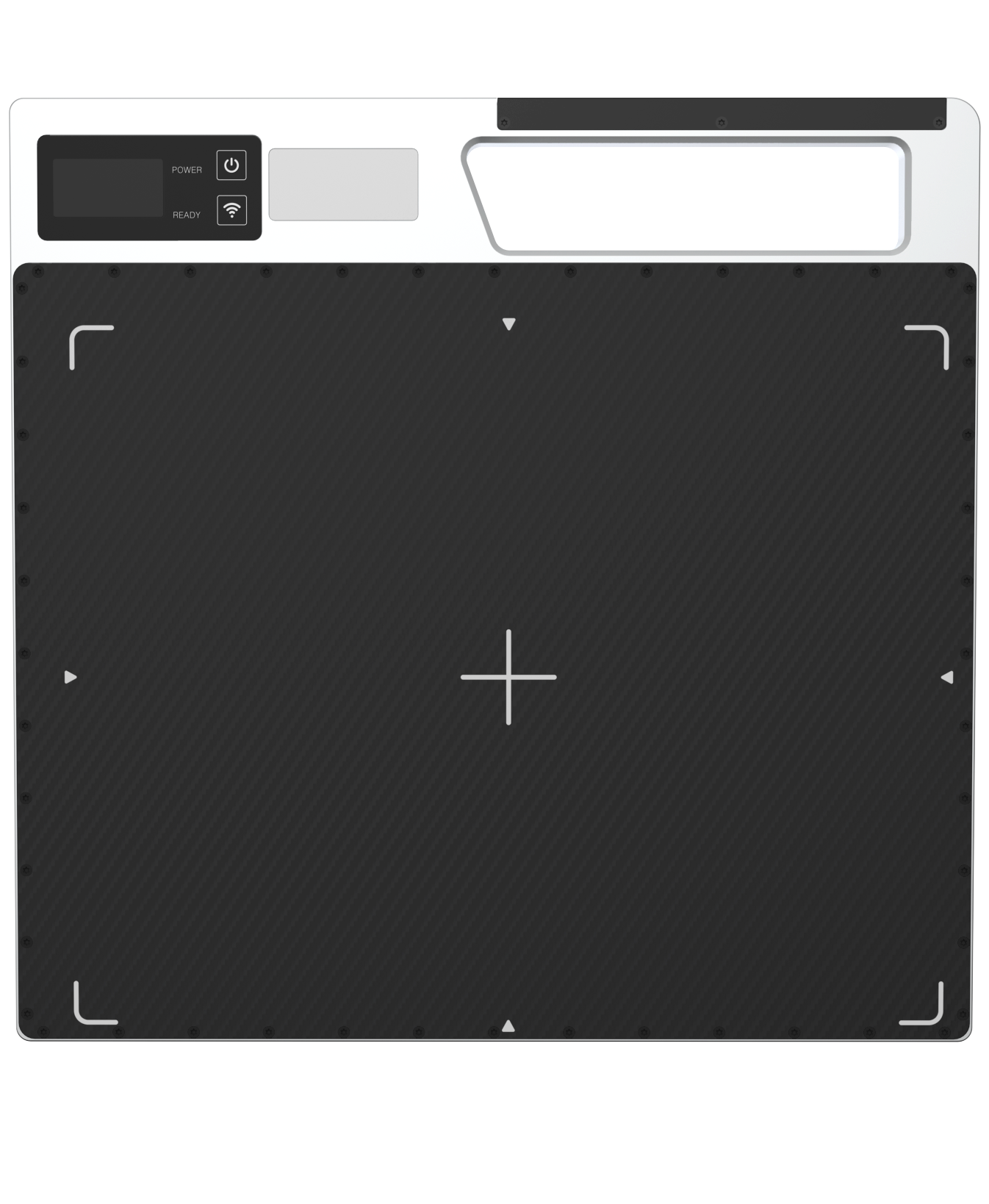

Scansilc 2430U
- Panel Image Area: 24 x 30 cm
- Active Image Area: 233 x 291 mm
- Pixel Pitch: 76 micron
- Resolution: 6.5 lp/mm
- Physical Dimensions: 325 x 318 x 20 mm
- Weight: 2.0 kgs
- Evironmental Protection: IP67 (Dust and water resistance)
- Drop Test: Over 1m on all 4 corners
- Unique control of the image panel and x-ray generator safely from the tablet/laptop without any additional bulky interface box, interface cables and connectors.
- Unique IP67 environmental protection against dirt, dust and water ingress. IP68 connectors Suitable for marine environments, desert climates. Can be easily sterilised and decontaminated
- User selectable operational modes Synchronised - fully cabled, semi-cabled and wireless or AED (automatic exposure detection)
- Unique load bearing weight of 170 kg
- Uniquely designed for security applications Not a fragile medical panel in a protective cover
- Small dead zone at bottom of panel of 3 mm
Options

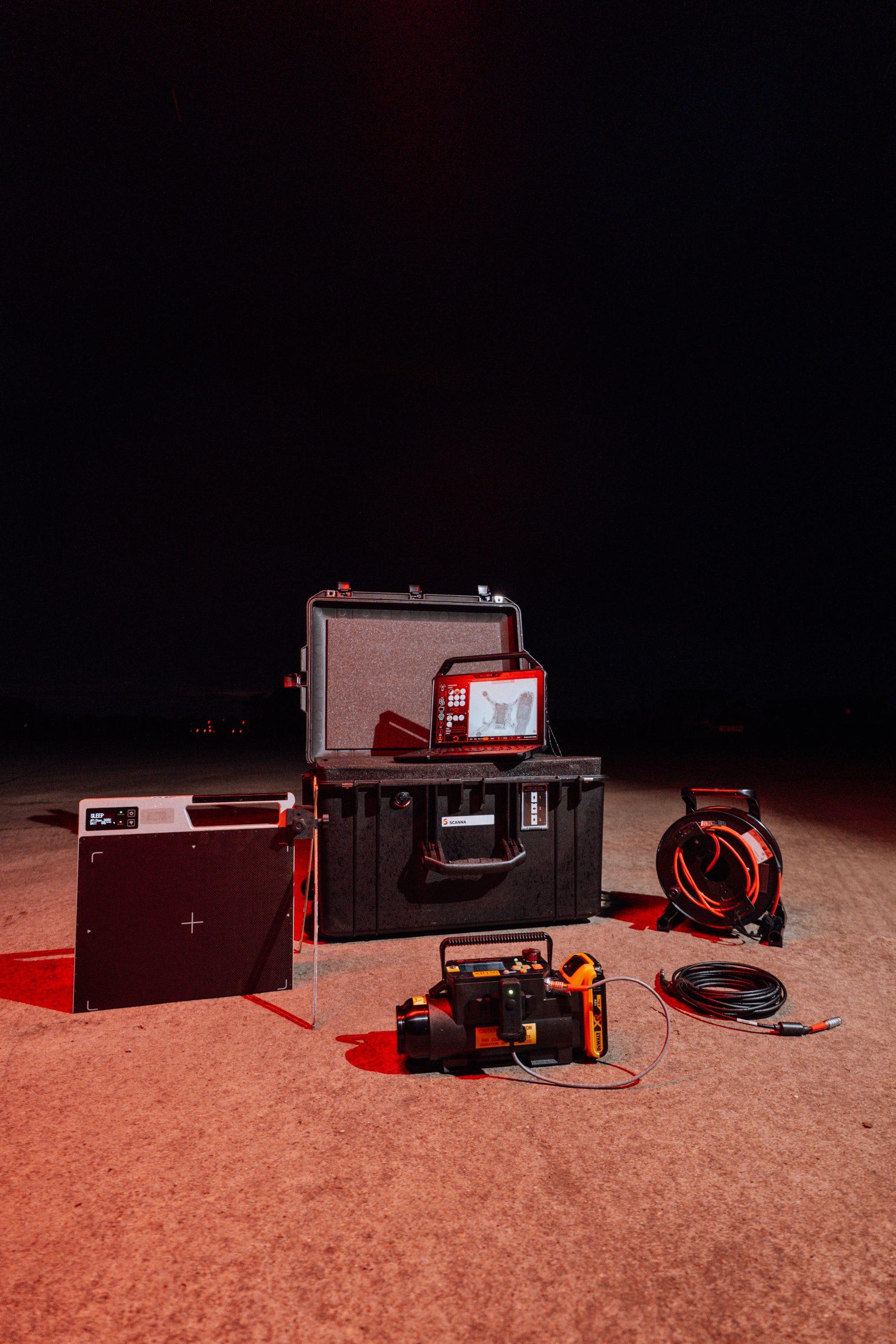

- A range of X-ray generator and control unit options are available
- Custom cable lengths for remote operation
- Custom wireless configurations
- ScanDem dual energy module for material discrimation
- Custom backpacks and transport solutions
