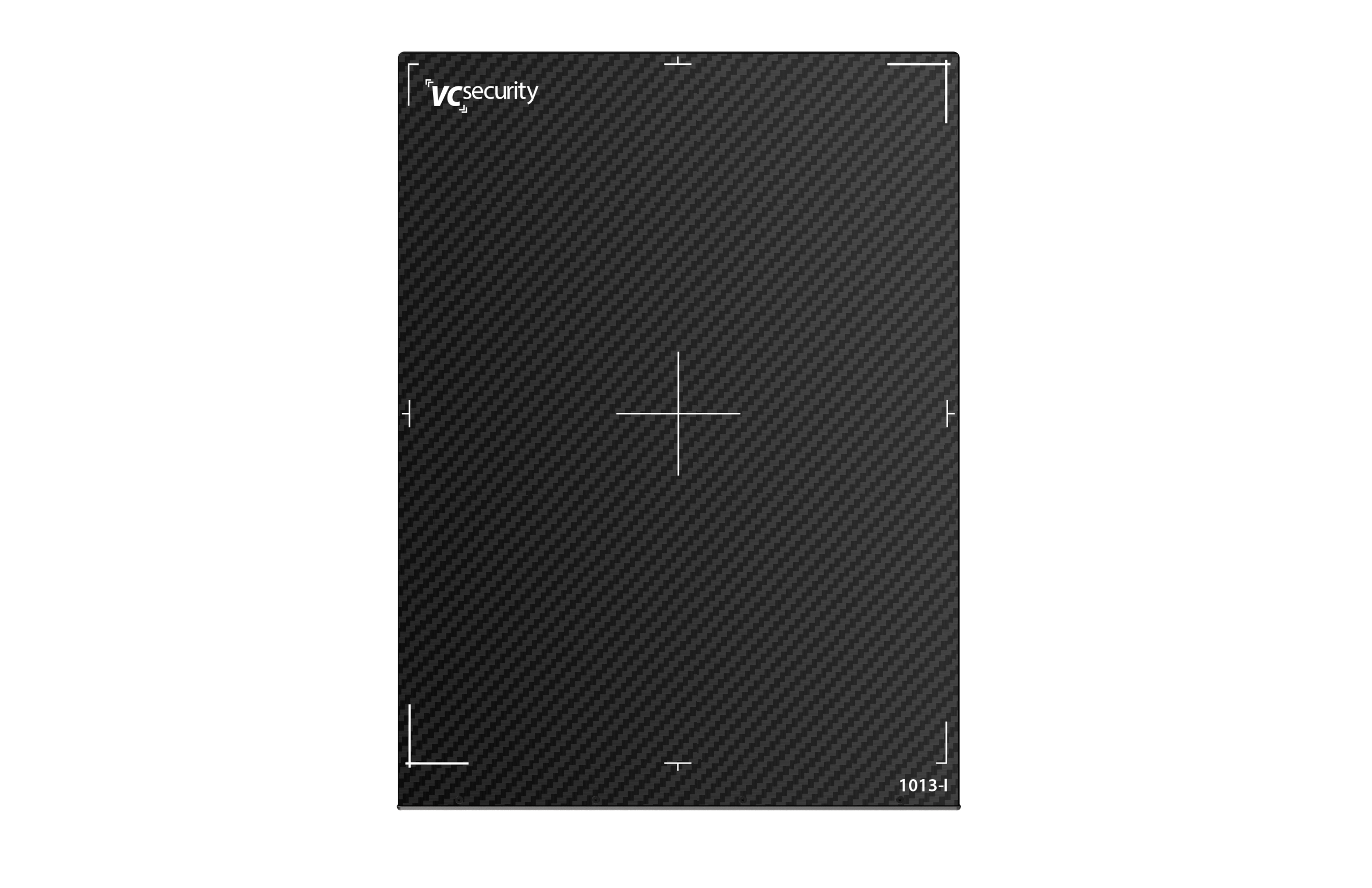

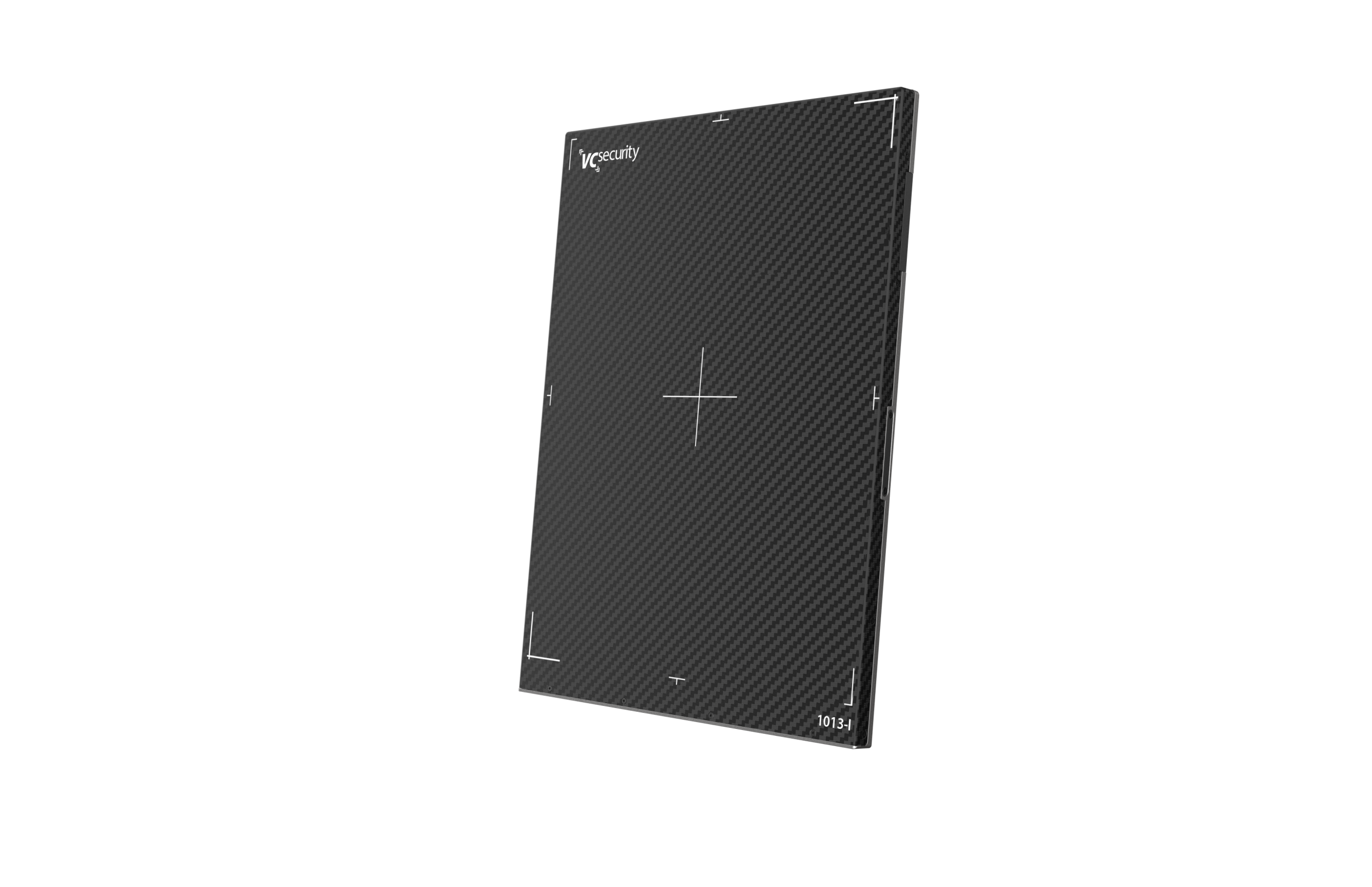

DR13-I
Compact 25 x 33 cm X-ray Imager
DR13-I is a robust, compact x-ray system for security and defence x-ray applications. The panel weighs only 2 kgs whilst being dust and water tight to IP67 and 1m impact and drop resistant.
The imaging area is 253 mm x 332 mm producing 16 bit, 100 micron ultra high resolution images.
Operators can control both pulsed and CP x-ray generators in synchronised cabled or wireless modes via a companion tablet or laptop.
Operates with a rechargeable lithium-ion battery, providing > 8 hours image capture time.
Operates with eBox light communications.
Specification
- Pixel Pitch: 100 microns
- Active Image Area: 25 x 33 cm
- Weight: 2 kg (4.9 lbs)
- Technical
- Options
- Downloads
Standard System Configuration
Compact 25 x 33 cm X-ray Imager
- Golden XR150
- DR13-I Panel
- Tablet Viewer/Controller
- Multiple mounting and optional accessories available
Active Image Area
253 X 332 mm
Pixel Pitch
100 Microns
Bottom Dead Area
7mm
Environmental Protection
Environmental Protection IP67
Image Resolution
2528 × 3318
Dimensions
269 × 362 x 15.5 mm
Options
- System with Golden Generator
- Imaging Panel standalone existing generator and controller
Download
