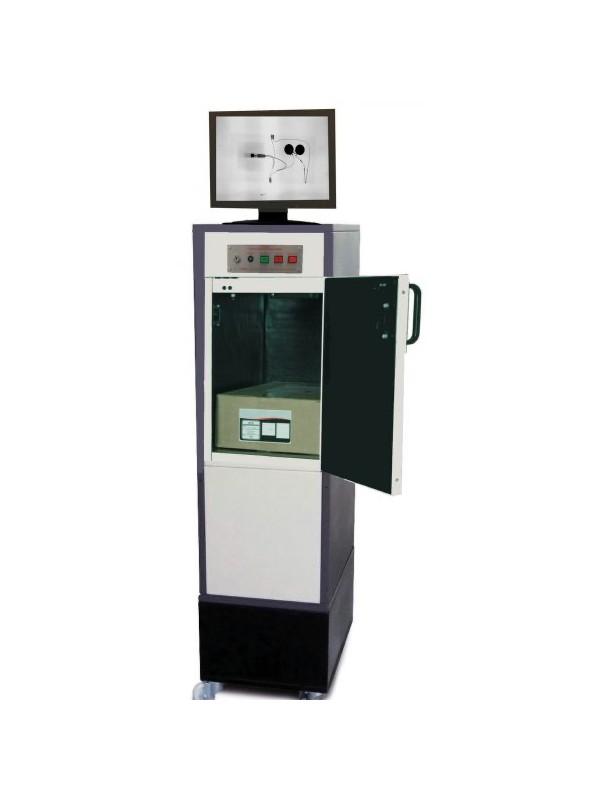

Scanmax 25 Mailroom X-Ray Scanner

Scanmax 25 mailroom x-ray machine is a compact floorstanding unit on wheels and a similar size to a 4 drawer filing cabinet.

Scanmax 25 has a generous screening chamber making ideal for with security x-ray screening of trays of mail, padded bags, parcels, archive boxes, briefcases and backpacks.

Specification

X-Ray Chamber size 56 x 42 cm
Simple One Button Operation
Very Safe for Operators
High Clarity, Easy to Interpret X-Ray Images
Floorstanding on Wheels

Technical
Options
Downloads

Standard system configuration

Scanmax 25 Mailroom X-Ray Scanner

17” Flat Planel Viewing Monitor (larger screen sizes also available)
Easy Mouse Control
System Safety Key
VGA Monitor Lead
Monitor IEC Lead

Power Supply

100V +/- 15% and 220V +/- 15% single phase 50/60 hz – (state voltage when ordering)

Weight

180 kgs unpacked. 268 kgs packed

Screening speed

Approx 60,000 items per hour in batches of 500

Contents of mailsack can be scanned in approximately 10-15 minutes

250 packages per hour screened individually

PAS97: 2021

Scanmax 25 is designed and tested to comply to the British Security Industry Standard: PAS97:2021 Specification for Mailscreening

Dimensions

H: 161.5 cm x W: 43 cm x D: 61 cm

Max Parcel size

H: 50 cm x W: 40 cm x D: 55 cm

Radiation safety

Scanmax 25 meets IRR 17 and recognised international radiation standards with emissions of less than 0.1 microsieverts per hour at the surface of the machine
