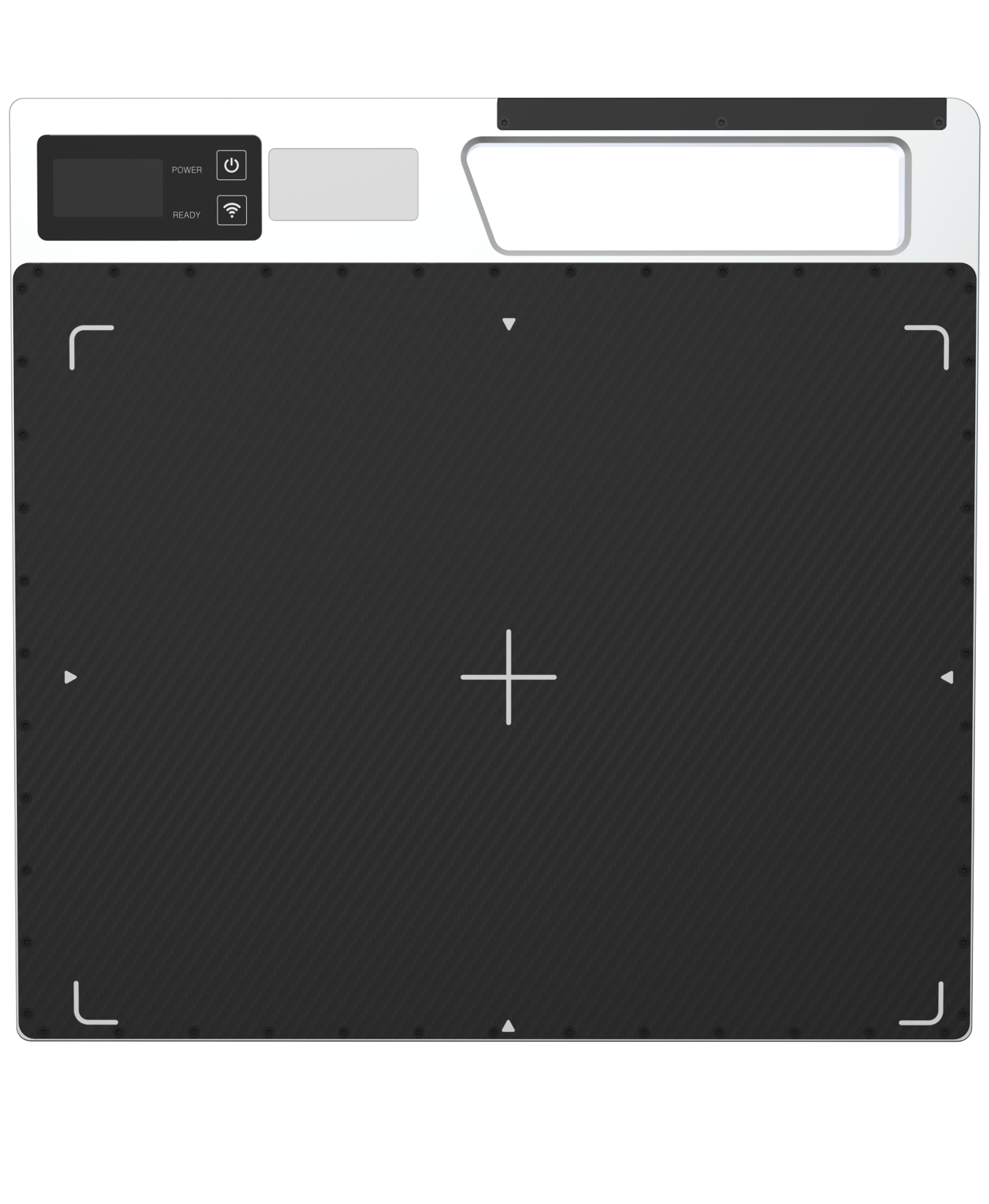

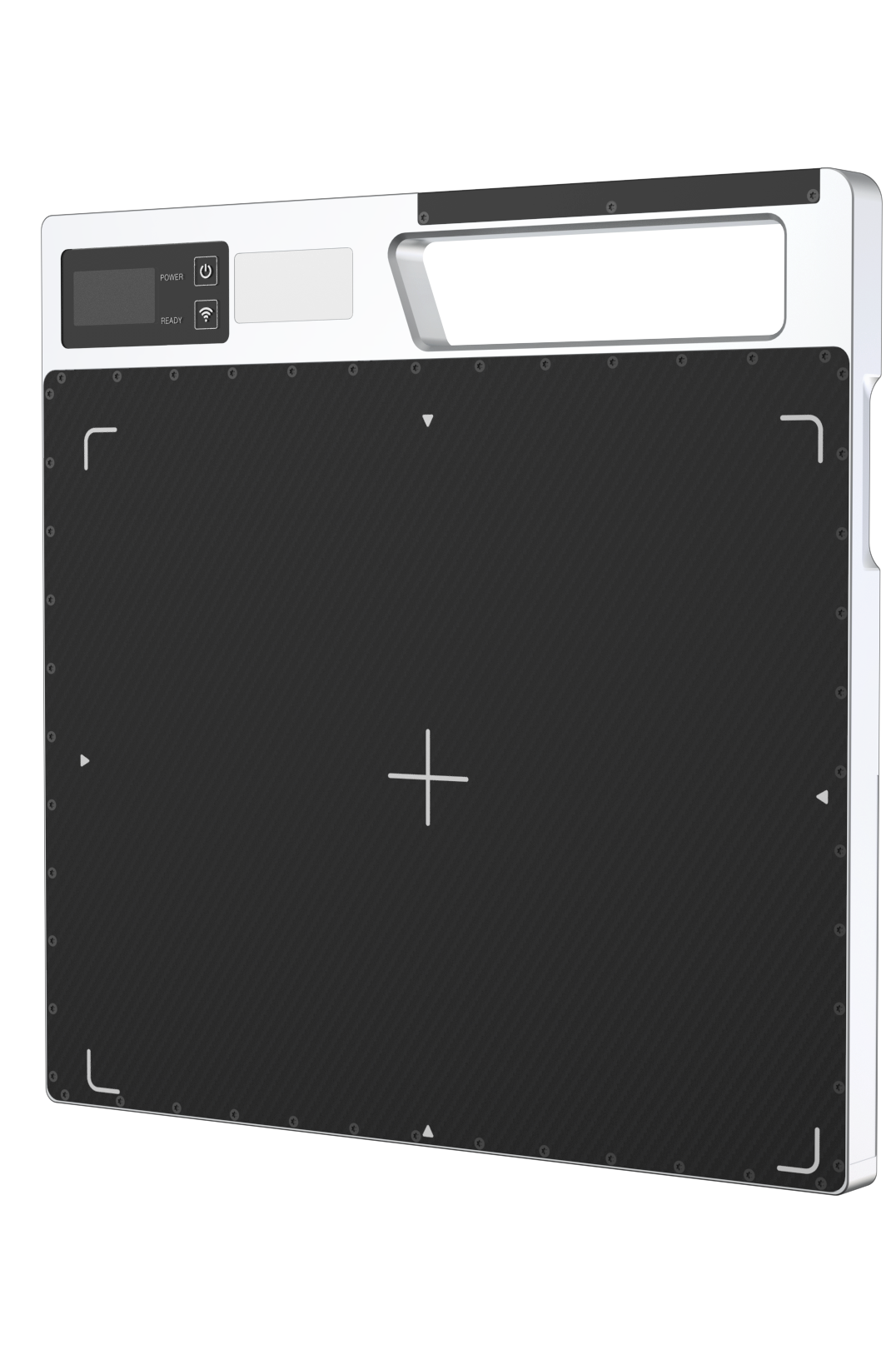

Scansilc 2430UH NDT
Compact, High-Resolution Digital X-Ray for Demanding Industrial Inspections
The SCANSILC 2430UH-NDT redefines portability and ease of use in industrial radiography. Designed as a robust, incredibly compact solution for field operations, this flat-panel detector strikes the perfect balance between mobility and high-fidelity imaging.
The panel weighs only 2.8kg, is dust and water tight and drop tested to over 1 m (3 feet).
The imaging area is 11.45 x 9” and offers 16 bit, 152-76 micron high resolution images.
The system is shielded and designed for operation with pulsed, CP and isotope sources up to 350 kv.
Operates in Software Trigger mode with your existing generator and laptop or can be supplied in a system with a Golden pulsed X-ray generator.
Specification
- Best in Class Imaging Quality of 76 microns
- Drop Tested to Over 1m on All 4 Corners
- Ruggedised Unibody Design
- IP67 Water and Dust resistant
- Active Imaging Area : 291x233mm
- Image Resolution : 3,840 x 3,072
- Technical
- Options
- Downloads
Standard System Configuration
Scansilc 2430-NDT high resolution x-ray panel for NDT
- Golden Generator : XR150/XRS-3/XRS-4
- 2430UH Panel
- Laptop controller Viewer
Image area
291 x 233 mm
(11.45 x 9”)
Pixel Pitch
76 μm
Resolution
3840 x 3072 pixels
Physical Dimensions
319 x 325 x 20 mm
(12.56 × 12.80 × 0.79 “)
Weight
2.8 kg (6.2 lbs)
Environmental Protection
IP67 (dust-tight and waterproof)
Options
- Wireless AED with any generator
- Sync with Golden Generators
- Golden generator control
Downloads
